hot melt adhesive gear metering pumps
The application of gear metering pumps in the hot melt adhesive industry is mainly
reflected in its multifunctional conveying and metering functions. The hot melt
adhesive gear pump realizes the change of working volume through the mutual
meshing of the master and driven gears, thereby completing the conveying and
metering of the hot melt adhesive. Its working principle is similar to that of a spinning
metering pump. The melt is driven into the tooth groove by the rotation of the gear,
and then extruded and pressed into the discharge cavity during the rotation process,
and finally pressed through the outlet pipe.

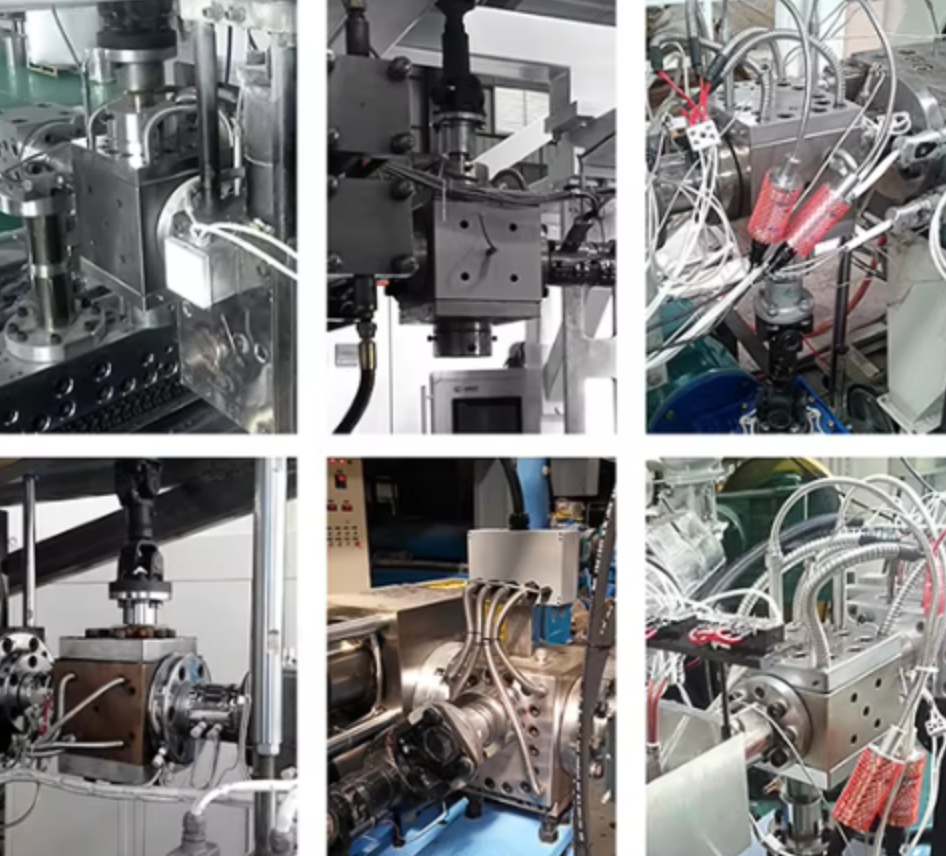

Application scenarios
1. Sheet and plate production: Provide stable and continuous melt flow to ensure
product thickness and uniformity.
2. Pipe production: Convey and pressurize polymer melt to ensure pipe wall thickness
and dimensional accuracy.
3. Film production: Provide stable melt flow and pressure to ensure film uniformity
and transparency.
Performance characteristics
1. Versatility: Suitable for conveying, pressurizing and metering of medium and low
viscosity melts to meet the needs of polymer melts of different viscosities.
2. Efficient sealing: Adopt high temperature resistant packing sealing structure to
ensure efficient sealing performance.
3. Flexible adjustment: By adjusting the speed of the pump, flexible flow adjustment
can be achieved. Variable frequency speed regulation is usually used to obtain near-linear
flow output characteristics.
Structural features
1. Key components: including pump plate, driving gear and driven gear, sliding bearing,
upper and lower plates, and packing seals, etc.
2. Rotation method: usually helical or spur gears are used, and the heating method is
generally electric heating.
3. Lubrication method: melt self-lubrication is used to prevent contamination of the
melt.
